GrowHub E25 Manual

SAFETY INFORMATION

Please read the following instructions carefully before using this device. Failure to observe these safety instructions may result in serious injury and will release VIVOSUN of all liability and void all product warranties.

Check and comply with your local law and restrictions for additional safety requirements for the installation and operation of the device.
Follow the instructions for each smart device and connect the appropriate device to the controller with the appropriate cable
DO NOT connect devices that are not explicitly compatible. Please contact our customer service about compatible devices and connection methods for this controller.
DO NOT use any grow devices or this controller outside or in any hazardous locations such as spaces with flammable materials, explosive materials, corrosive chemicals, or in wet environments. These devices are designed to operate indoors in an indoor grow tent.
Please read and follow the instructions for each device and how to connect it to the controller. Failure to follow the instructions for each of the controlled device may damage them and will void warranty.
If your device is damaged, stop using it and contact us immediately. Do not disassemble or modify the devices without VIVOSUN’s direction may cause damage to the device and will void the warranty.

KEY FEATURES

FLEXIBLE COMBINATION : Support multiple SGS devices like AeroLight, AeroZesh, AeroWave E and AeroLab, combine by growers freely
REALIZE REMOTE CONTROL : Easy to make you monitor and control AeroLight, AeroZesh and AeroWave E by VIVOSUN APP remotely
WI-FI & APP CONTROL : Wi-Fi enabled with VIVOSUN App; monitor and control remotely.
EASY INSTALLATION : Small size, plug and play control system with lots of flexibility
SIMPLE TO USE : One button for Wifi configuration, status indicator & reset, clear and safe green LED to show the status
SMART & PROFESSIONAL : Smart auto-mode and professional grow recipe settings take plants from seed to harvest with minimal user input needed.

PRODUCT CONTENTS

Image	Name	Quantity

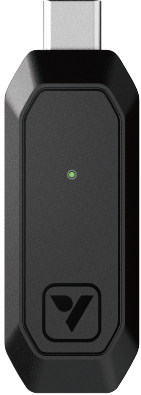

	VIVOSUN GrowHub Controller E25	1pc


Name

Quantity

e0da9bf33ce98258b2e7e5a5c52dd657

VIVOSUN GrowHub Controller E25

1pc

DIMENSIONS

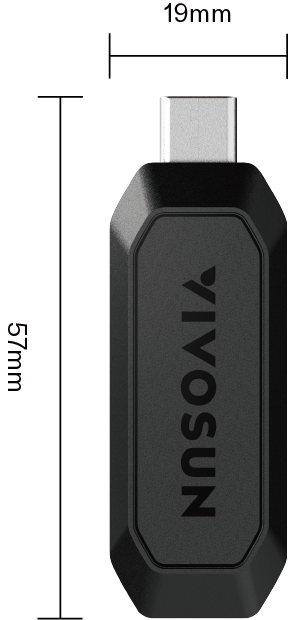

Top View

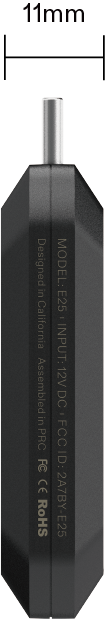

Side View

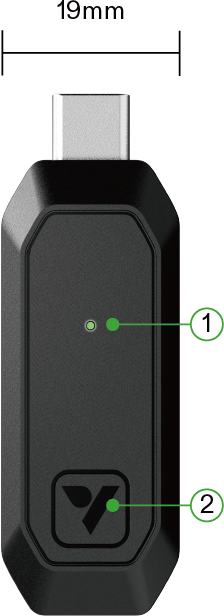

Bottom View

4cb16865775c22fead6f7a48d49d0f9a

8580737e472dc5be24fd95edb4a7b00a

a8b5a8cbd327d8565e64d3029d886ffb

① Indicator Light

② Button

INSTALLATION

Status Indicator

Quick press the button. The green LED will flash slowly 3 times to show it is working.

Reset

Long press the button for 3 second until the green LED is on, then release the button. The green LED will turn off and reset success. E25 will restart and enter WiFi configuration.

Firmware Update

The green LED will flash fast during Firmware Update.

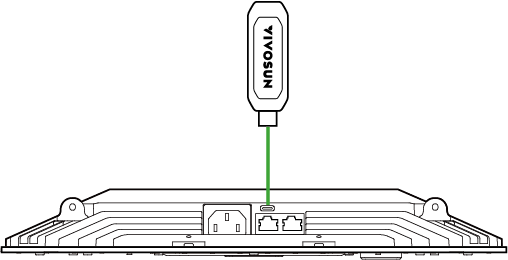

Insert E25 to the Type C port of AeroLight, AeroZesh, AeroWave E or other SGS devices. E25 will enter WiFi configuration

AeroLight

eedee1c4961d1812a6dadf1338067bb9

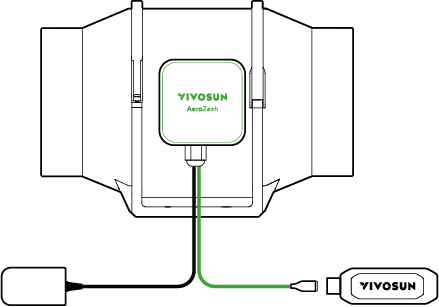

AeroZesh

313a7fee5feb36b73fedc11f72ef973a

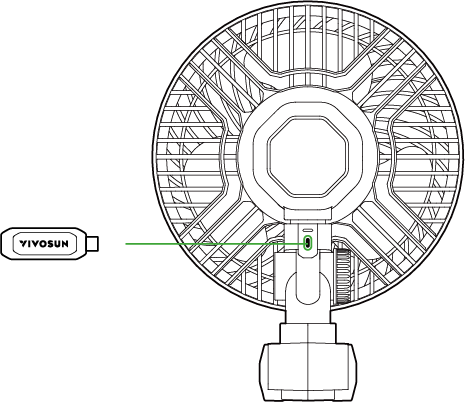

AeroWave E

c2cc7d9928ec01f18e6beba78e7d3041

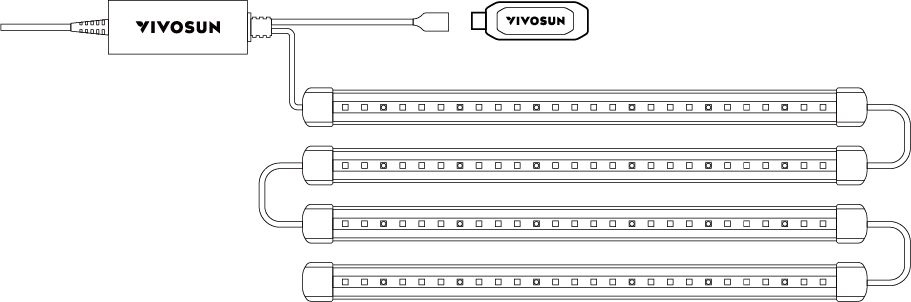

LumaRay

fad8a4a83cd6f662eb0c13767edf1b0f

Combo with AerolabTH

Pair AeroLab THB1S as a sensor to GrowHub E25. Then you can get a display and temperature/ humidity sensor for GrowHub E25 and work work with Vivosun AeroLight, AeroZesh and other VIVOSUN SGS device as you need. Just like a GrowHub E42/E42A. Besides, AeroZesh Auto mode can be achieved with AeroLab THB1S and GrowHub E25

Notice: Each device needs one GrowHub E25.

Connection of controller and multiple lights

Connect multiple AeroLights with RJ45 cables, and the first light to a VIVOSUN GrowHub controller E42 or E25 to control all the lights for dimming, spectrum tuning and ON/OFF cycle setting. Each light needs to connect the AC power separately and the GrowHub controller only need to connect to an AeroLight to run. Please see the VIVOSUN GrowHub controller E42 manual for information about light control and more if connected to E42.

WIFI CONFIGURATION

Search "VIVOSUN" in the Apple App Store or in the Google Play Store to download the VIVOSUN App. With the VIVOSUN App, you can check and control your GrowHub from anywhere in the world—whether you are on your couch, visiting your family, or traveling abroad.

WiFi Configuration

During WiFi configuration, the Green LED will flash fast. Then follow the WiFi configuration process on the Vivosun APP .

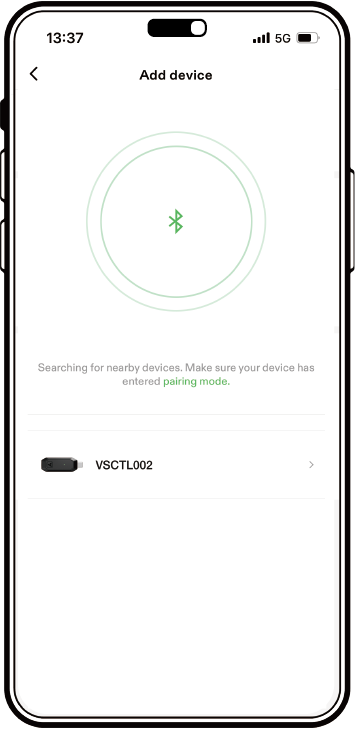

Step 1:

Step 2:

07bc1297084ad1e62f38c845c13fbadb

8b4d0ed262b0acb17d4bec2a03b1a807

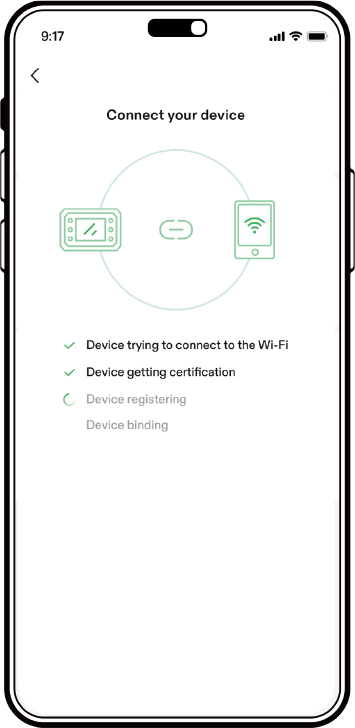

Step 3:

Step 4:

c428f831b3645b58a4d0019a6c720b97

10843681022cd54cdc60772004e0f049

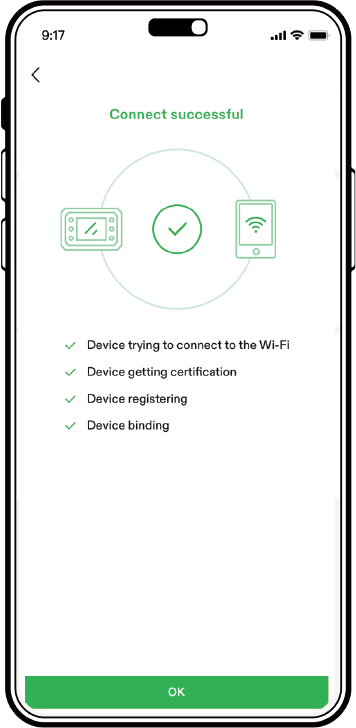

After WiFi configuration success, the green LED stops flashing and goes off.

If E25 is offline (i.e., no Wi-Fi connection or you do not have internet access), the green LED will flash slowly. It will continue flashing until E25 has a Wi-Fi connection again.

After WiFi configuration success, the green LED stops flashing and goes off.

If E25 is offline (i.e., no Wi-Fi connection or you do not have internet access), the green LED will flash slowly. It will continue flashing until E25 has a Wi-Fi connection again.

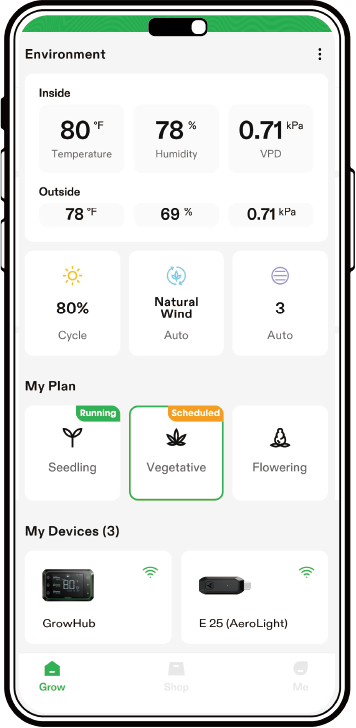

APP CONTROL

Expansion to GrowHub

E42/E42A

GrowHub E25 can either schedule independently or share the same schedule with GrowHub E42/E42A. You can add E25 and E42/E42A to the same garden on VIVOSUN APP.

GrowHub E25 can work as an expansion port for GrowHub E42/E42A.

Remote control the devices with manual or cycling mode.

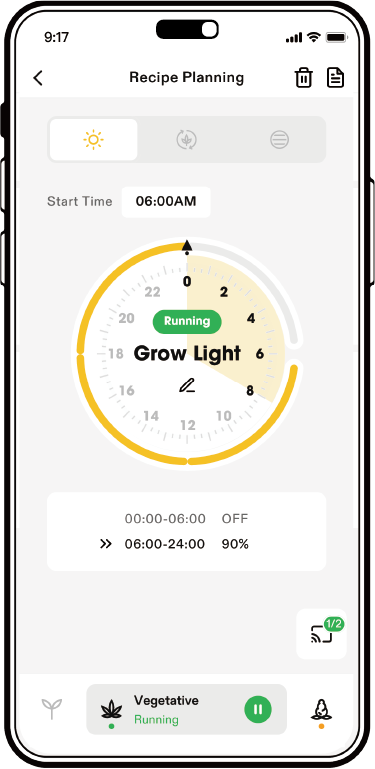

Grow Recipes: Enables you to set your lights, circulation fans, and duct fans based on different growth stages. The recipes provided in the VIVOSUN App are created by professional growers. All you have to do is click "apply" and the your VIVOSUN setup with take care of the rest.

Warranty

VIVOSUN offers a 2-year limited warranty on this product purchased directly from us or our authorized dealers, beginning on the original date of purchase.

This warranty is provided in addition to, and does not affect, your statutory rights under applicable consumer protection laws in the country where the product was purchased.

For the full Warranty Policy, please visit: https://www.vivosun.com/help/warranty-policy

Alternatively, you may contact customer service at support@vivosun.com / +1 888-505-8486.

FCC ID STATEMENT

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
